Kia PV5 2025 - Onwards L1 H1 Driver Side Sloping Stepped 15 Compartment Plywood Rack, PR1177

This sloping stepped 15 compartment plywood rack fits the L1 H1 (short wheelbase, low roof) Kia PV5 vehicle.

Manufactured from 15mm plywood on our in-house CNC machine, this is 3 separate units comprising of 15 compartments at the rear door end, a mid open shelved unit & a unit at the bulkhead end with 7 sloping shelves.

Driver side stepped 15 compartment, sloping rack:
Approx. dimensions: 1090mm high x 1000mm wide x 280mm deep at the bottom & 140mm deep at the top area with the compartments.

Driver side middle 3 shelved rack:
Approx. dimensions: 1310mm high x 340mm wide x 290mm deep at the deepest point.
Floor - 1st shelf 425mm
1st - 2nd shelf 395mm
2nd - 3rd shelf 395mm
Driver side sloping rack closest to the bulkhead:
Approx. dimensions: 1310mm high x 580mm wide x 400mm deep, 7 shelves ideal for housing the Stanley Fatmax Deep Pro Organisers and similar sized cases (approx. 140mm shelf clearance).
Passenger side 16 compartment rack:
Approx. dimensions: 1090mm high x 1000mm wide x 140mm deep.
1st shelf - 2nd shelf 205mm
2nd shelf - 3rd shelf 265mm
3rd shelf - 4th shelf 265mm

* Please note that your vehicle will need the sides to be ply lined in order for our racks to be installed, we can undertake this. Our racks are not contoured to the PV5's profile due to it's make-up, they will have a flat back to them *

The partial false floor shown in the photos is not included in this item, this can all be purchased together from our other website listing for the PV5.

We offer free fitting at our Milton Keynes workshop Mon - Fri 08:30am - 3pm, this is pre-bookable and can be arranged by calling our office on 01908 270127 Mon - Fri 8am - 4pm.

These are not currently dispatched.

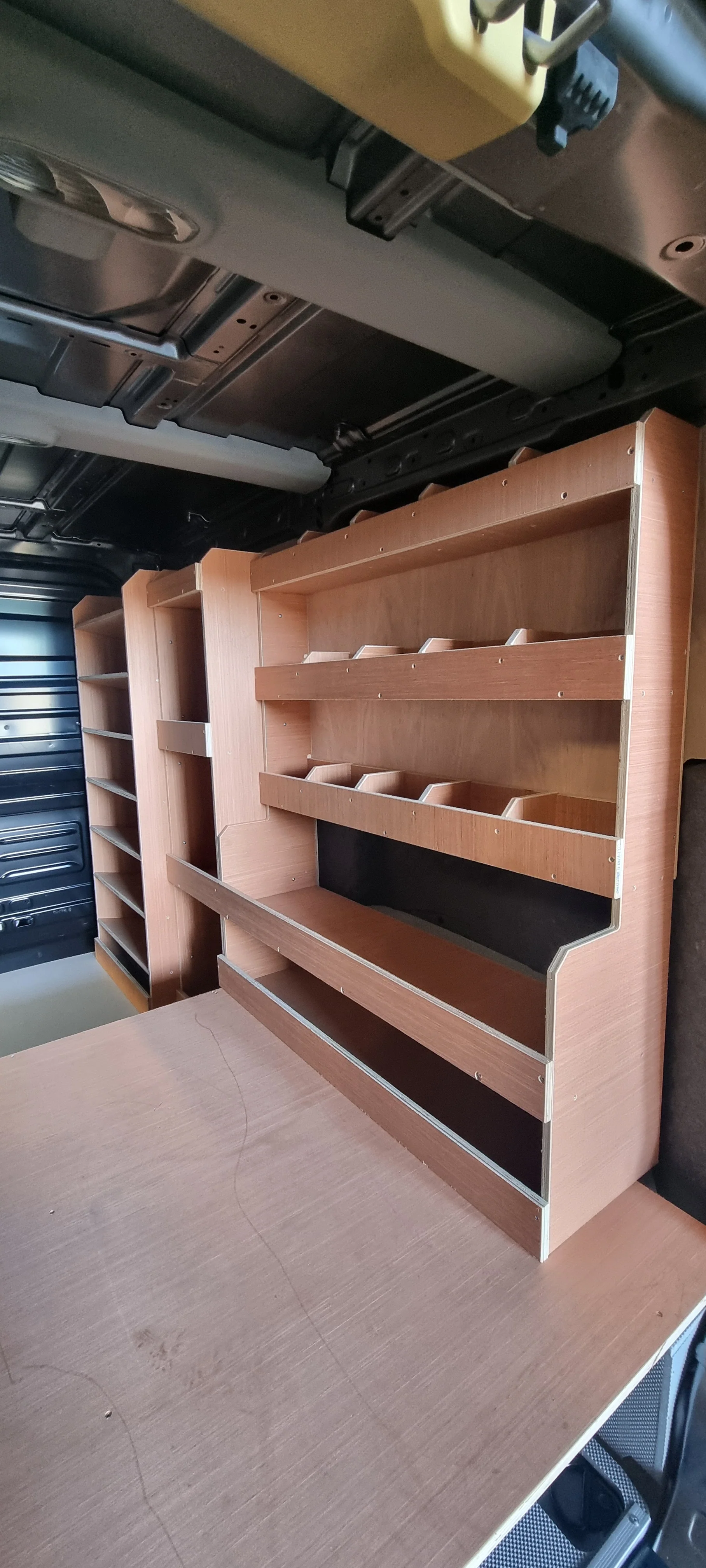

*Please note - picture for illustration purposes only*
